A29

Take your next standout ride
to a whole new level.

Design Yours

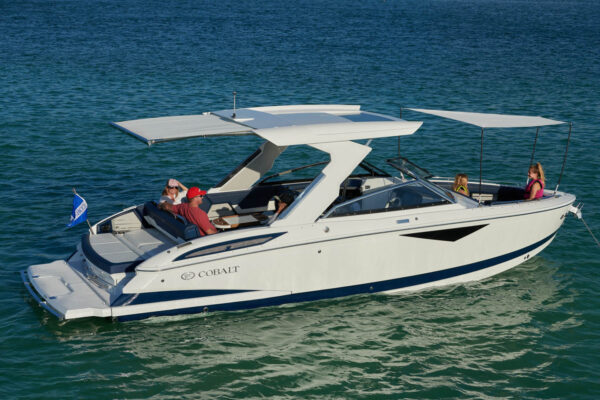

COBALT A29

The Ultimate in Style, Comfort, and Innovation

A29 Usage Types

ACTIVITIES

Day Cruising
Wakeboarding
Skiing
At Anchor In-Water Activity

Environment

Large Bodies of Water

Trailering

LOA

29' 0"

Beam

9' 0"

Fuel

121 gal

Capacity

yacht certified

Head

yes

Download A29 Brochure

Exterior

The A29 delivers leading-edge innovations that take the A Series to another level. Experience the handling of this runabout’s rugged, handcrafted construction while enjoying the space, comfort, and style of a premium yacht. All in all, it delivers head-turning style on the water and a truly standout ride.

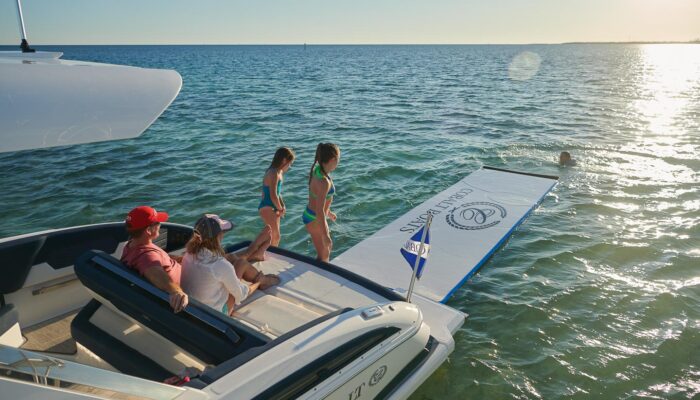

Hydraulic Swim Platform

Great for water activities, the entire full-width swim platform lowers below the water hydraulically with the push of a button, offering easy access in or out of the water and into the boat.

Port-side Forward Walk-thru

Port-side walk-through allows for the day cabin design and provides more comfortable forward facing seating in the bow.

Splash & Stow^™®

Enjoy this easy, convenient built-in system to manage large yacht-style inflatables and store them out of sight in a dedicated compartment—deployed and retrieved with the touch of a button.

Features & Innovations

Performance Feature

Monsoon Engines

Thanks to a close partnership with GM Marine and following the strictest industry standards, Monsoon engines are produced in a state-of-the-art engine facility in Tennessee. Technology is the key behind our new ultra-clean engines. It all starts with direct injection, which bypasses the air intake manifold and injects fuel directly into the combustion chamber, making for a cleaner, more controlled and complete burn resulting in improved fuel economy. Read more...

Download the Monsoon Flier

Watch Video

Exterior Innovation

Splash & Stow^™

Cobalt’s award-winning Splash & Stow™ eliminates the traditional way of transporting, deploying, and retrieving heavy-duty, yacht-style inflatables. At the quick touch of a button, the inflatable is deployed and connected to the built-in power inflator, leading to hours of fun and enjoyment on the water. Available with either the Splash & Stow™ Inflatable Round Island or Inflatable Long Rectangle Mat.

Watch Video

Interior Feature

Cobalt + Garmin

Harness the dependability, durability, and capability of Garmin at your helm with our feature rich, high-resolution glass cockpit. Here you'll find advanced navigation, networking and instrumentation technology combine with an intuitive interface to meet the needs of any captain. Get wider viewing angles and superior clarity on the touchscreen with full HD in-plane switching. Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping. With SmartMode™ everything is designed to give you quick, one-touch access to the information you need.

Saltwater or fresh — no matter where you take to the water, you can trust Garmin marine technology to give you an unsurpassed level of confidence at the helm.

Exterior Feature

Makefast Powered Sun Awning

The Makefast powered sun awning is a compact mechanism featuring soft stop/start, silent gearbox, canvas auto tensioning, and stainless steel construction.

Interior Innovation

SOF-TRAC POSITIVE TRACTION MAT

From the swim platform through the cockpit, dress up your new Cobalt with the Sof-Trac Positive Traction Mat. Gentle on swimsuits and wakeboards, you’ll maintain traction even when wet. See you local Cobalt dealer for details.

Step & Platform Innovation

Hydraulic Swim Platform with Swim Step

Combine the convenience of a hydraulically submersible swim platform with the innovation of the patented Cobalt Swim Step and you'll have a multi-level home-base for all your water-borne activities. Easy access in or out of the water with two levels deployed below the waterline.

Interior Innovation

Fresco Chil Vinyl

Finally, no more hot seats on darker colored vinyl while you’re out enjoying a full day of fun on the water. This anti-bacterial, anti-fungal, mildew-resistant, and sulfide stain-resistant fabric technology keeps your vinyl a full 15-20 degrees cooler than traditional vinyl even when it’s out in the sun.

Exterior Feature

Fender Clip Package

Cobalt stainless-steel fender clips are a quick mount system installed in the deck at the perfect fender position, so the lines are always set to optimum length. When docking, simply insert the pin into the fitting and you’re done.

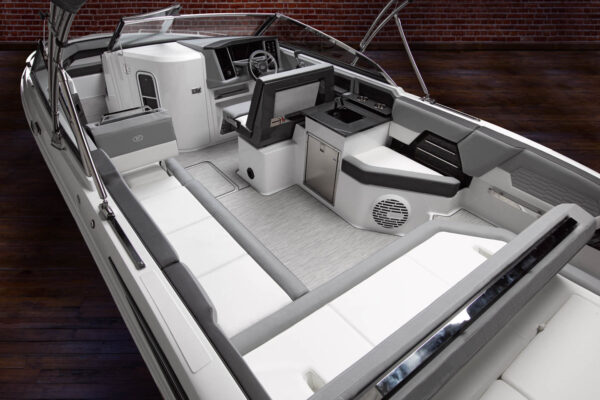

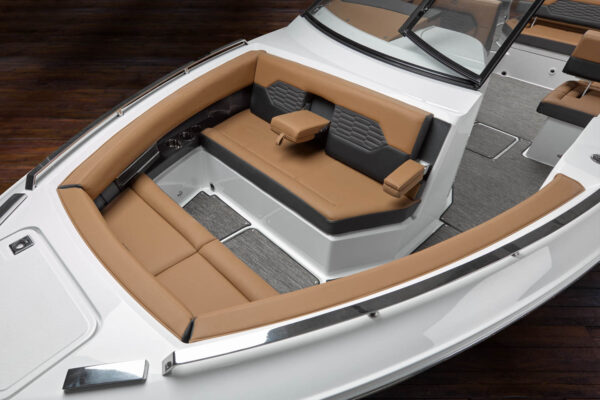

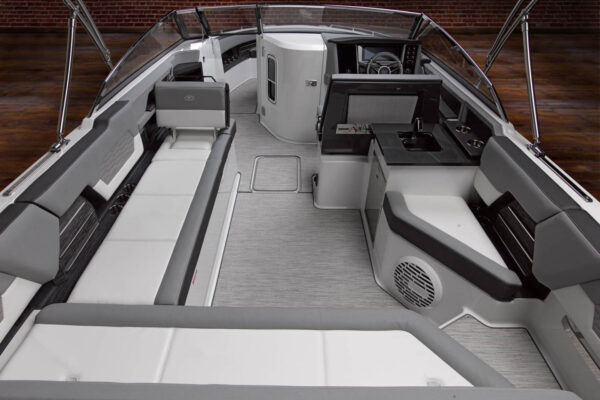

Interior

The elegant A29 features a surprising range of amenities—including a dual Garmin Glass Cockpit touchscreen, a spacious day cabin with a portside walk thru, plus the fun and convenient Splash & Stow^™ inflatables management system that makes every day on the water memorable.

Day Cabin with Head Compartment

Find a large, step-down exterior-cabin compartment with a sink console, pump-out Porta Potti, VacuFlush options, tinted skylight, and heat and air conditioning vented from the cabin HVAC. Experience the unique center-access cabin and step down into the space for added overhead height with lounging/ large cushion surface to stretch out.

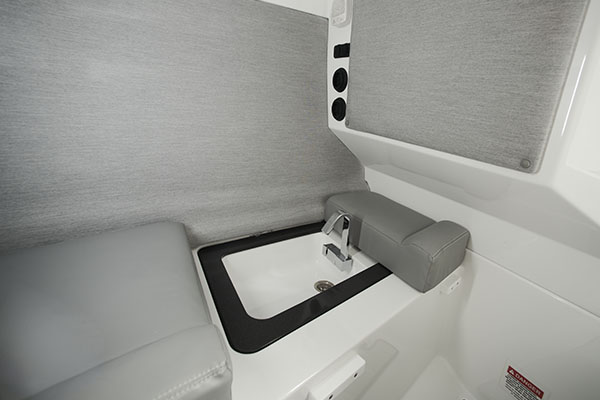

Optional: Sink in the Day Cabin

Optional sink in cabin, can be conveniently hidden under a seat cushion when not in use.

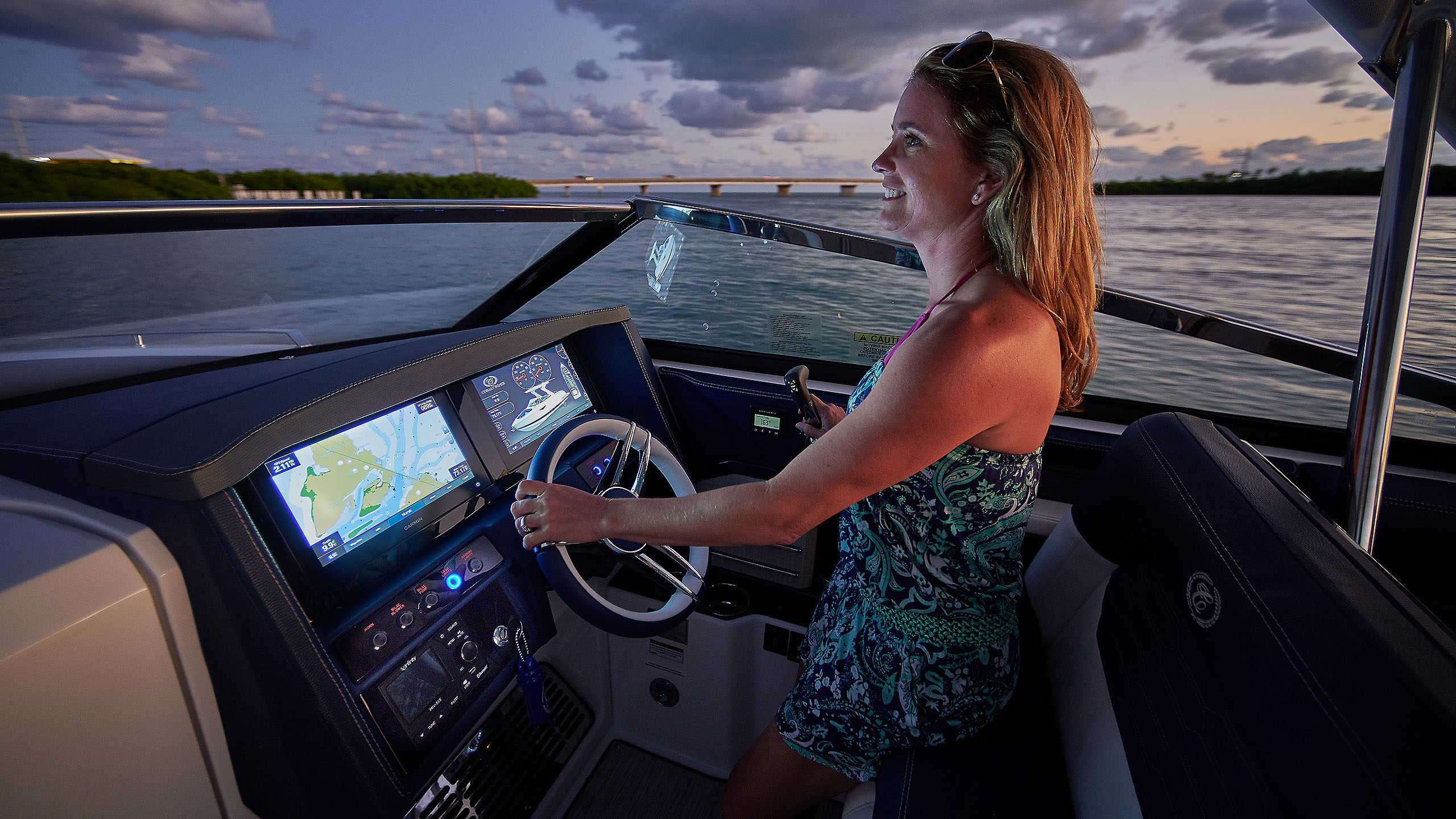

Helm Station

A captain-focused double-wide helm offers the Cobalt glass cockpit with dual 10” or optional 12” Garmin instrumentation, ergonomically positioned controls and a rich, custom-stitched console.

A29 VIDEOS

Cobalt A29 Product Tour

A29 - At the center of life's important moments

A29 Teaser

Technical Details

Download A29 Brochure

Specifications

Length Overall w/Swim Platform
29' 0'' / 8.84 m
Beam
9' 0'' / 2.74 m
Interior Cockpit Width
94'' / 2.39 m
Deadrise at Transom
21 degrees / 21 degrees
Fuel Capacity
121 gal. / 458 L
Freshwater Capacity
18 gal. / 68 L
Bridge Clearance w/o Bimini
60'' / 1.52m
Bridge Clearance w/Arch
94'' / 2.40 m
Bridge Clearance w/Hard Top
105'' / 2.67 m
Draft Drive Up
28'' / .71 m
Draft Drive Down
38'' / .97 m
Dry Weight (varies with options)
7,275 lbs. / 3,300 kg
Boat Certified Capacity
Yacht Certified
Boat Certified Capacity w/gear
Yacht Certified

Power Selection

Volvo Penta

V8-380CE DP - 380 hp (283 PkW)
V8-430CE DP - 430 hp (321 PkW)

MerCruiser

8.2 Mag HO ECT B3X DTS - 430 hp (321 PkW)
8.2 Mag ECT B3X DTS - 380 hp (283 PkW)

Monsoon

6.2 250A B3X - 430 hp

Engine Enhancements (Standard)

EVC (Volvo)
DTS (Merc)

Engine Enhancements (Optional)

Tow Mode (Volvo EVC)
TCC (Titanium Ceramic Coating)-Volvo - Detail
TCC (Titanium Ceramic Coating)-Volvo
Ocean X (Salt Water Ready) Duoprop Outdrive Packages with Fresh Water Cooling Protected by a revolutionary titanium-ceramic coating and new sensor technology, OceanX is Volvo Penta's answer to the corrosive effects of salt water.
Seacore (Merc) - Detail
Seacore (Merc)
MerCruiser SeaCore, a comprehensive corrosion protection system for the engines, transoms and lower units operated in saltwater.
Active Trim, Merc - Detail
Active Trim, Merc
Active Trim provides instant automatic trim for compatible outboards and sterndrives. This intuitive, hands-free system continually adjusts engine trim for changes in operating conditions to improve performance, increase fuel economy and optimize cruising speed at the touch of a button.

Dash & Instrumentation

Standard

Stainless Steel Switches
Steering Wheel, Leather Color-Matched
Glass Cockpit, Dual Garmin 8610
Hour Meter(s)
Composite Helm Eyebrow, Custom Stitching
Depth & Water Temp Gauge Pkg.
Accessory Power Plugs/USB - 12 Volt

Optional

Tow Mode (Volvo EVC)
TCC (Titanium Ceramic Coating)-Volvo - Detail
TCC (Titanium Ceramic Coating)-Volvo
Ocean X (Salt Water Ready) Duoprop Outdrive Packages with Fresh Water Cooling Protected by a revolutionary titanium-ceramic coating and new sensor technology, OceanX is Volvo Penta's answer to the corrosive effects of salt water.
Seacore (Merc) - Detail
Seacore (Merc)
MerCruiser SeaCore, a comprehensive corrosion protection system for the engines, transoms and lower units operated in saltwater.
Active Trim, Merc - Detail
Active Trim, Merc
Active Trim provides instant automatic trim for compatible outboards and sterndrives. This intuitive, hands-free system continually adjusts engine trim for changes in operating conditions to improve performance, increase fuel economy and optimize cruising speed at the touch of a button.

Entertainment

Standard

Stereo Remote, Transom (Prem. Sound)
Stereo Remote, Dash
Speaker Covers, Arch (Platinum Sound) - Detail
Speaker Covers, Arch (Platinum Sound)
Sound System, Bluetooth, w/6 Spkrs.
iPod/USB/MP3 Port - Detail
iPod/USB/MP3 Port
Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.
Custom Acoustic Speaker Covers

Optional

Stereo Remote, Transom (Std. Sound)
Satellite Radio System
Prem Sound w/Transom Spkrs.
Prem Sound w/Transom & Hardtop Spkrs.
Prem Sound w/Transom & Arch Spkrs-1 pr.
Plat Sound w/Transom Spkrs. - Detail
Plat Sound w/Transom Spkrs.
Plat Sound w/Transom & Hardtop Spkrs. - Detail
Plat Sound w/Transom & Hardtop Spkrs.
Plat Sound w/Transom & Arch Spkrs-2 pr. - Detail
Plat Sound w/Transom & Arch Spkrs-2 pr.

Interior

Standard

Trash Receptacle, 28 gal
Motorbox Sunpad w/Adj. Backrest
Passenger Seat Flip Backrest System
Ski Storage w/Protective Liner
Ice Chest, portable 48 qt
Helm Seat, Double-Wide
Head w/Porta Potti
Dual Sundeck Convertible Lounger
Cockpit Seat, Stbd.
Bow Walk-Thru Door
Bench Seat Storage
Aft Sunpad w/Walk-Thru Transom

Optional

Throw Pillows, Weighted (4) - Detail
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. 4 pillows, 18x18 inches.
Teak Floor Pkg. (Bow,Cockpit,Head)
Throw Pillows, Weighted (10) - Detail
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. 10 pillows: 6 weighted 18x18 inches / 4 non-weighted 12x16 inches
Stainless Steel Foot Tread (helm only) - Detail
Stainless Steel Foot Tread (helm only)
Stainless steel with rubber tread, the footrest instantly becomes an interior detail worth bragging about. Size and shape will vary slightly for custom fit to specific boat model.
Sof-Trac Mat, Cockpit - Detail
Sof-Trac Mat, Cockpit
Sof-Trac mat combines an aggressive non-skid traction with the soft feel of a cushioned pad. Durable and stylish, the sof-trac mat is a water sport enthusiast favorite. (Shown in the Cobalt R8.)
Sink Console (head compartment) - Detail
Sink Console (head compartment)
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
Portal Light (1-Head Compartment) - Detail
Portal Light (1-Head Compartment)
Interior Wood Trim Pkg. (w/seat)
LED Interior Accent Lighting (RGB) - Detail
LED Interior Accent Lighting (RGB)
(Shown in Cobalt model R6)
Helm Seat, Electric
Interior Wood Trim Pkg. (w/galley)
Head w/Pump Out Porta-Potti, Macerator
Head w/Pump Out Porta Potti
Head w/Electric Porcelain, Macerator - Detail
Head w/Electric Porcelain, Macerator
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
Galley, Cockpit w/Sink & Refrigerator
Gray Water System
Head w/Electric Porcelain Toilet - Detail
Head w/Electric Porcelain Toilet
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
Floor Covering, Sea Grass - Detail
Floor Covering, Sea Grass
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.
Dinette Table, Solid Teak
Dinette Table w/Teak Accent
Day Cabin Cushion Insert - Detail
Day Cabin Cushion Insert
Cooler, Soft-Side (35L) - Detail
Cooler, Soft-Side (35L)
Bow Table (additional)
Bow Center Cushion Insert - Detail
Bow Center Cushion Insert
Air Compressor w/Holder - Detail
Air Compressor w/Holder
12v power inflator for water toys, with a dedicated holder.
Air Conditioning/Heating (Volvo only)

Exterior

Standard

Swim Platform, Extended w/Swim Step
Transhield Shipping Cover
Transom Lighted Model Designator
Motorbox Actuator
Ski Pylon - Stainless Steel
Stainless Top Trim Windshield
Graphics, Molded-In Gelcoat
Midship Cleats
Fender Clips w/Line (4) - Detail
Fender Clips w/Line (4)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
COBALT Lettering, Chrome Backlit
Extended Running Surface
Anchor Locker
Bow Scuff Plate, Stainless Steel - Detail
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.

Optional

Wakeboard Racks, Triton 2 (Roswell) na w/hardtop
Underwater Lighting - Detail
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model R8 Surf.
Transom Tilt Switch - Detail
Transom Tilt Switch
Control the drive trim adjustment at the transom for utilization while trailering or dockside.
Transom Shower - Detail
Transom Shower
Freshwater wash down with pressure water system and fresh water tank.
Teak Swim Platform
Swim Platform Transom Lighting - Detail
Swim Platform Transom Lighting
LED transom lighting provides the appropriate level of illumination for the perfect evening of entertaining friends.
Swim Platform Ladder
Splash & Stow¬Æ (Inflatable)
Swim Platform - Hydraulic w/Swim Step - Detail
Swim Platform - Hydraulic w/Swim Step
Sof-Trac Mat, Swim Platform
Docking Lights-Stainless Steel - Detail
Docking Lights-Stainless Steel
The docking lights with stainless steel trim rings.
Flagpole w/Flag - Detail
Flagpole w/Flag
Stainless steel flag pole with flag clips, receptacle and flag.
COBALT Lettering, Satin White (exterior)
COBALT Lettering, Satin Black (exterior) - Detail
COBALT Lettering, Satin Black (exterior)
Arch, Folding w/Rotating Sunshade - Detail
Arch, Folding w/Rotating Sunshade
Arch available in white or black.
Board Rack Covers, Roswell
Arch, Elec Folding w/Rotating Sunshade - Detail
Arch, Elec Folding w/Rotating Sunshade
Arch available in white or black.
Arch w/Hard Top & Electric Awning
Arch, Alum, Folding w/Bimini - Detail
Arch, Alum, Folding w/Bimini
Arch available in white or black.
Arch, Elec Folding w/Bimini - Detail
Arch, Elec Folding w/Bimini
Arch available in white or black.
Arch w/Hard Top

Canvas

Optional

Shade Sail, Bow
Mooring Cover - Detail
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, and stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
Bow Tonneau Cover - Detail
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
Cockpit Tonneau Cover - Detail
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.
Bimini, Premium Easy-Fold - Detail
Bimini, Premium Easy-Fold
Easy fold hardware allows simple and quick lowering of stowed bimini top.

Structural & Safety

Standard

Through Prop Exhaust
Kevlar Reinforced Hull
Stainless Steel Windshield Braces - Detail
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
Fire Extinguisher(s), Manual
Ignition Safety Switch - Detail
Ignition Safety Switch
Standard engine ignition safety switch with belt clip.
Composite Transom
Fiberglass Cockpit Liner
Fiberglass Stringer System
Composite Floor
Circuit Breaker Protected Elec System - Detail
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
Battery Switch, Dual w/ACR
10/5/3 Year Warranty Protection

Optional

Windlass, All Chain w/Anchor - Detail
Windlass, All Chain w/Anchor
Tool Kit - Detail
Tool Kit
Trim Tabs w/Indicators, w/o Autoglide - Detail
Trim Tabs w/Indicators, w/o Autoglide
Fine tune your ride with trim tabs. Great for load leveling or extreme low speed cruising.
Rearview Mirror, Roswell w/Custom Cover
Rearview Mirror, PTM w/Custom Cover - Detail
Rearview Mirror, PTM w/Custom Cover
The clamp-on design is extremely solid and secure, but easily removed. A single tension knob will loosen the clamp and arm articulation for adjustment. Just position and lock everything down.
Cruise Control-Zero Off
Fire Extinguisher, Automatic System - Detail
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
CE Requirements w/Auto Fire Extinguisher - Detail
CE Requirements w/Auto Fire Extinguisher
Bow Thruster - Detail
Bow Thruster
Battery Maintainer/Charger, 220v - Detail
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.
Battery Maintainer/Charger, 110v - Detail
Battery Maintainer/Charger, 110v
Built in battery charger located in the engine compartment with external power connection at the transom.
