CS23

Where Family Memories Begin...
And Experiences Last A Lifetime.

Design Yours
COBALT CS23

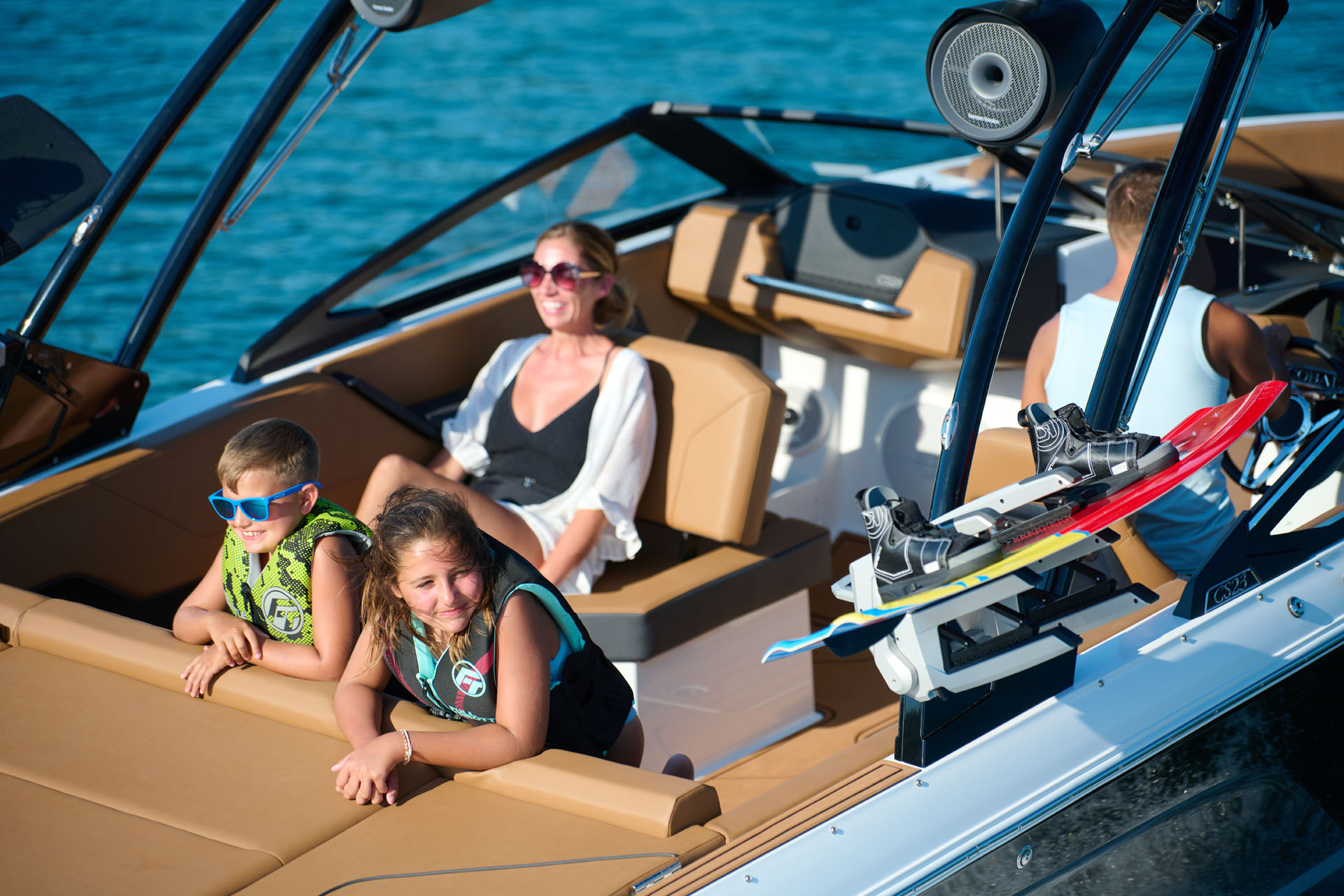

Made for family experiences and lasting memories.

ACTIVITIES
  • Day Cruising
  • Wakeboarding
  • Skiing
  • At Anchor In-Water Activity
Environment
  • Small Bodies of Water
Trailering
  • Yes
LOA
23' 5"
Beam
8' 6"
Fuel
60 gal
Capacity
12
Head
no

Exterior

Its ‘wave’ body style-line and new Obsidian windshield are eye-catching, and its eye-pleasing color combinations and integrated full beam width swim platform make it clear that good times are at hand.
Full-Beam Swim platform

The large space of full-beam swim platform also offers the Cobalt patented Swim-Step as an option.

New Obsidian windshield

With a modern black frame and just a touch of brightwork, the new Obsidian Windshield comes as standard equipment.

Easy Trailerable Size

The CS23 is the perfect size for a road trip to explore new boating destinations.

Features & Innovations

Performance Feature

Monsoon Engines

Thanks to a close partnership with GM Marine and following the strictest industry standards, Monsoon engines are produced in a state-of-the-art engine facility in Tennessee. Technology is the key behind our new ultra-clean engines. It all starts with direct injection, which bypasses the air intake manifold and injects fuel directly into the combustion chamber, making for a cleaner, more controlled and complete burn resulting in improved fuel economy. Read more...
Download the Monsoon Flier
Interior Innovation

Fresco Chil Vinyl

Finally, no more hot seats on darker colored vinyl while you’re out enjoying a full day of fun on the water. This anti-bacterial, anti-fungal, mildew-resistant, and sulfide stain-resistant fabric technology keeps your vinyl a full 15-20 degrees cooler than traditional vinyl even when it’s out in the sun.
Interior Innovation

Harman Kardon Audio System

Cobalt has partnered with Harman Kardon to bring their signature sound to the water. Guests can comfortably sit next to any speaker on the boat, guaranteeing a pleasant experience from every seat.. Includes marine ruggedized components and speakers that are classic yet timeless and can handle the harshest conditions–creating a top-tier audio system like none other in the marine industry.
Exterior Feature

Fender Clip Package

Cobalt stainless-steel fender clips are a quick mount system installed in the deck at the perfect fender position, so the lines are always set to optimum length. When docking, simply insert the pin into the fitting and you’re done.

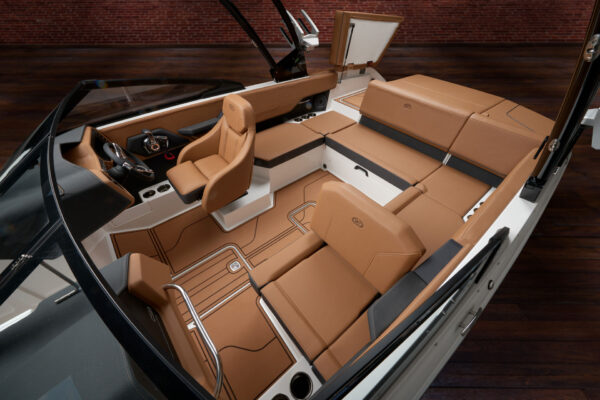

Interior

From its hand-crafted Cobalt finishes to its many luxury features, the new CS23 offers families the ideal way to transform an outing into a timeless adventure.
Redesigned Dash

At the Helm, a New Steering wheel, round gauges with LCS screens  is standard. Optional 7” Garmin touchscreen (shown) is available.

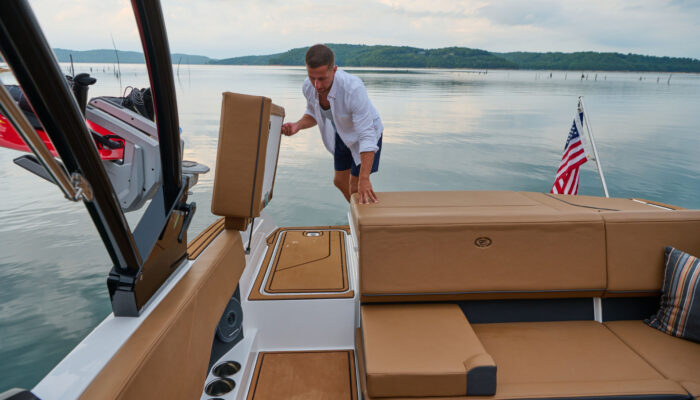

Optional Walk-Thru Cushion

The aft walk-though becomes full beam width sun pad when setup with optional  filler cushion.

Convertible Passenger Seat

Adjustable back rest provides flexibility in seating. Passengers can sit facing either forward or aft.

NEW - COBALT TRAILERS

Photo of Trailer

Trailer shown is for illustration only, bunks, frame and drive protection may vary. Trailers are not available for all models.

For the first time ever, you can order a custom-built Cobalt trailer engineered to match the running surface of your new Cobalt. Now you can have your trailer painted to perfectly match your Cobalt gelcoat. Further customize your trailer with over fifty different options to choose from, including nine different wheel designs. Cobalt trailers are NMMA certified and come with a 5-Year Limited Warranty. See your dealer for more information.

Technical Details

  • Length Overall w/Swim Platform
    23' 5'' / 7.14 m
  • Beam
    8' 6'' / 2.59 m
  • Deadrise at Transom
    20 degrees / 20 degrees
  • Fuel Capacity
    60 gal. / 227 L
  • Bridge Clearance w/o Bimini
    53'' / 1.35 m
  • Bridge Clearance w/ Bimini
    88'' / 2.24 m
  • Bridge Clearance w/Arch
    91'' / 2.31 m
  • Draft Drive Up
    24'' / .61m
  • Draft Drive Down
    37'' / .94m
  • Dry Weight (varies with options)
    4000 lbs. / 1814 kg
  • Boat Certified Capacity
    12 persons / 12 persons
  • Boat Certified Capacity w/gear
    1695 lbs. / 768 kg

Volvo Penta

  • V8-380CE DP - 380 hp (283 PkW)
  • V8-350CE-G DP - 350 hp (261 PkW)
  • V8-350C-G DP - 350 hp (261 PkW)
  • V8-300CE-G DP - 300 hp (224 PkW)
  • V8-300C-G DP - 300 hp (224 PkW)
  • V6-280C-G DP - 280 hp (209 PkW)
  • V6-250C-G SX - 250 hp (179 PkW)
  • V6-250C-G DP - 250 hp (149 PkW)

MerCruiser

  • 6.2 L MPI ECT-300 B3 DTS - 300 hp (224 PkW)
  • 6.2 L MPI ECT-350 B3 DTS - 350 hp (261 PkW)
  • 4.5 L MPI ECT-250 B3 DTS - 250 hp (186 PkW)
  • 4.5 L MPI ECT-250 Alpha - 250 hp (186 PkW)

Monsoon

  • 5.3 250A B3X - 350 hp (261 PkW)

Engine Enhancements (Optional)

  • Tow Mode (Volvo EVC)
  • TCC (Titanium Ceramic Coating)-Volvo - Detail
    TCC (Titanium Ceramic Coating)-Volvo

    TCC (Titanium Ceramic Coating)-Volvo

    Ocean X (Salt Water Ready) Duoprop Outdrive Packages with Fresh Water Cooling Protected by a revolutionary titanium-ceramic coating and new sensor technology, OceanX is Volvo Penta's answer to the corrosive effects of salt water.

  • EVC (Volvo)
  • Seacore (Merc) - Detail
    Seacore (Merc)

    Seacore (Merc)

    MerCruiser SeaCore, a comprehensive corrosion protection system for the engines, transoms and lower units operated in saltwater.

  • Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)
  • Active Trim, Merc (requires DTS) - Detail
    Active Trim, Merc (requires DTS)

    Active Trim, Merc (requires DTS)

    Active Trim provides instant automatic trim for compatible outboards and sterndrives. This intuitive, hands-free system continually adjusts engine trim for changes in operating conditions to improve performance, increase fuel economy and optimize cruising speed at the touch of a button.

Standard

  • USB/USB-C/12v Receptacle/Charger - Detail
    Accessory Power Plug - 12 Volt

    USB/USB-C/12v Receptacle/Charger

  • Stainless Steel Switches
  • Etched Stainless Steel Instrument Panel
  • Premium Black/SS Steering Wheel
  • Stainless Steel COBALT Emblem
  • Digital Hour Meter
  • Depth & Water Temp Gauge Pkg.
  • Composite Helm Eyebrow, Custom Stitching

Optional

  • Tow Mode (Volvo EVC)
  • TCC (Titanium Ceramic Coating)-Volvo - Detail
    TCC (Titanium Ceramic Coating)-Volvo

    TCC (Titanium Ceramic Coating)-Volvo

    Ocean X (Salt Water Ready) Duoprop Outdrive Packages with Fresh Water Cooling Protected by a revolutionary titanium-ceramic coating and new sensor technology, OceanX is Volvo Penta's answer to the corrosive effects of salt water.

  • EVC (Volvo)
  • Seacore (Merc) - Detail
    Seacore (Merc)

    Seacore (Merc)

    MerCruiser SeaCore, a comprehensive corrosion protection system for the engines, transoms and lower units operated in saltwater.

  • Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)
  • Active Trim, Merc (requires DTS) - Detail
    Active Trim, Merc (requires DTS)

    Active Trim, Merc (requires DTS)

    Active Trim provides instant automatic trim for compatible outboards and sterndrives. This intuitive, hands-free system continually adjusts engine trim for changes in operating conditions to improve performance, increase fuel economy and optimize cruising speed at the touch of a button.

Standard

  • Stereo Remote, Transom (Prem. Sound)
  • Stereo Remote, Dash - Detail
    Stereo Remote, Dash

    Stereo Remote, Dash

    Dash mounted control of the stereo from the helm station while the main head unit is securely mounted in a lockable compartment in the passenger seat area.

  • iPod/USB/MP3 Port - Detail
    Includes USB-A and USB-C connections.  Multiple power ports throughout, and one power/data port at helm.

    iPod/USB/MP3 Port

    Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.

  • Sound System, Bluetooth, w/6 Spkrs.

Optional

  • Stereo Remote, Transom (Std. Sound)
  • Satellite Radio System
  • Premium Sound System
  • Platinum Sound System
  • Platinum Sound System w/Arch Spkrs.-1 pr.
  • Prem Sound System w/Arch Spkrs-1 pr.

Standard

  • Seating Varadense Comfort
  • Trash Receptacle
  • Helm Seat, Manual (sliding)
  • Bow Walk-Thru Door
  • Helm Seat, Flip-Up

Optional

  • Throw Pillows, Weighted (4) - Detail
    Throw Pillows, Weighted (4)

    Throw Pillows, Weighted (4)

    Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.

  • Throw Pillows, Weighted (10) - Detail
    Throw Pillows, Weighted (10)

    Throw Pillows, Weighted (10)

    Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.

  • Sof-Trac Mat, Cockpit - Detail
    Sof-Trac Mat, Cockpit

    Sof-Trac Mat, Cockpit

    Sof-Trac mat combines an aggressive non-skid traction with the soft feel of a cushioned pad. Durable and stylish, the sof-trac mat is a water sport enthusiast favorite. (Shown in the Cobalt R8.)

  • Helm Seat, Electric
  • LED Interior Accent Lighting (RGB)
  • Dinette Table, Solid Teak - Detail
    Dinette Table, Solid Teak

    Dinette Table, Solid Teak

  • Floor Covering, Sea Grass - Detail
    Floor Covering, Sea Grass

    Floor Covering, Sea Grass

    Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.

  • Cockpit Heater
  • Cooler, Sof-Side (35L)
  • Dinette Table w/cockpit receptacle - Detail
    Dinette Table w/cockpit receptacle

    Dinette Table w/cockpit receptacle

  • Bow Cushion Insert (Fwd/Aft)
  • Aft Walk-Thru/Sunpad Filler Cushion
  • Air Compressor w/Holder - Detail
    Air Compressor w/Holder

    Air Compressor w/Holder

    12v power inflator for water toys, with a dedicated holder.

  • Aft Facing Rumble Seat

Standard

  • Transhield Shipping Cover
  • Graphics, Molded-In Gelcoat
  • Ski Tow Eye, Stainless Steel
  • Swim Platform w/o Ladder - Detail
    Swim Platform w/o Ladder

    Swim Platform w/o Ladder

  • Extended Running Surface
  • Cleats, SS - Bow, Midship, Stern
  • COBALT Lettering, SS
  • Aluminum Windshield, Obsidian
  • Anchor Locker
  • Bow Scuff Plate, Stainless Steel - Detail
    Bow Scuff Plate, Stainless Steel

    Bow Scuff Plate, Stainless Steel

    Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.

Optional

  • Wakeboard Racks, PTM ClampForce 3.0
  • COBALT Lettering, Satin White (exterior)
  • COBALT Lettering, Satin Black (exterior)
  • Wakeboard Racks, Elite (Alum) - Detail
    Wakeboard Racks, Elite (Alum)

    Wakeboard Racks, Elite (Alum)

  • Wakeboard Racks, Triton 2 (Roswell)
  • Board Rack Covers, PTM
  • Underwater Lighting - Detail
    Underwater Lighting

    Underwater Lighting

    LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model R8 Surf.

  • Transom Tilt Switch - Detail
    Transom Tilt Switch

    Transom Tilt Switch

    Control the drive trim adjustment at the transom for utilization while trailering or dockside.

  • Swim Platform w/Flip-Down Step - Detail
    Swim Platform w/Flip-Down Step

    Swim Platform w/Flip-Down Step

  • Swim Platform Transom Lighting
  • Sof-Trac Mat, Swim Platform (w/step)
  • Sof-Trac Mat, Swim Platform (w/o step)
  • Sof-Trac Mat, Gunwales
  • Flagpole w/Flag - Detail
    Flagpole w/Flag

    Flagpole w/Flag

    Stainless steel flag pole with flag clips, receptacle and flag.

  • Fender Clips w/Line (4) - Detail
    Fender Clips w/Line (4)

    Fender Clips w/Line (4)

    A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.

  • Board Rack Covers, Roswell
  • Docking Lights-Stainless Steel - Detail
    Docking Lights-Stainless Steel

    Docking Lights-Stainless Steel

    The docking lights with stainless steel trim rings.

  • Arch, Zenith Folding w/Bimini (w/RGB lighting) - Detail
    Arch, Zenith Folding w/Bimini (w/RGB lighting)

    Arch, Zenith Folding w/Bimini (w/RGB lighting)

    Arch available in white or black.

  • Arch, Zenith Folding w/Bimini (w/o RGB lighting) - Detail
    Arch, Zenith Folding w/Bimini (w/o RGB lighting)

    Arch, Zenith Folding w/Bimini (w/o RGB lighting)

    Arch available in white or black.

Optional

  • Shade Sail, Bow
  • Mooring Cover - Detail
    Mooring Cover

    Mooring Cover

    The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.

  • Cockpit Tonneau Cover - Detail
    Cockpit Tonneau Cover

    Cockpit Tonneau Cover

    Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.

  • Bimini Top
  • Bow Tonneau Cover - Detail
    Bow Tonneau Cover

    Bow Tonneau Cover

    Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.

Standard

  • Through Prop Exhaust
  • Stainless Steel Windshield Braces - Detail
    Stainless Steel Windshield Braces

    Stainless Steel Windshield Braces

    Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.

  • Kevlar Reinforced Hull
  • Ignition Safety Switch - Detail
    Ignition Safety Switch

    Ignition Safety Switch

    Standard engine ignition safety switch with belt clip.

  • Fire Extinguisher(s), Manual
  • Fiberglass Stringer System
  • Composite Transom
  • Drink Holders (16) - Bow, Cockpit, Swim Plat.
  • Composite Floor
  • Composite Seat Bases
  • Circuit Breaker Protected Elec System - Detail
    Circuit Breaker Protected Elec System

    Circuit Breaker Protected Elec System

    Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.

  • 10/5/3 Year Warranty Protection
  • Battery Switch, Single - Detail
    Battery Switch, Single

    Battery Switch, Single

    Battery switch disconnects the single engine battery from entire vessel, with the exception of the bilge pump and stereo memory.

Optional

  • Trim Tabs w/Indicators w/o Autoglide
  • Tool Kit - Detail
    Tool Kit

    Tool Kit

  • Rearview Mirror, Roswell w/Custom Cover
  • Rearview Mirror, PTM w/Custom Cover - Detail
    Drivers Rearview Mirror (W/S Mount)

    Rearview Mirror, PTM w/Custom Cover

    The clamp-on design is extremely solid and secure, but easily removed. A single tension knob will loosen the clamp and arm articulation for adjustment. Just position and lock everything down.

  • Fire Extinguisher, Automatic System - Detail
    Fire Extinguisher, Automatic System

    Fire Extinguisher, Automatic System

    Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.

  • Cruise Control-Zero Off
  • Cruise Control-Smart Tow (Merc DTS)
  • CE Requirements w/Auto Fire Extinguisher - Detail
    CE Requirements w/Auto Fire Extinguisher

    CE Requirements w/Auto Fire Extinguisher

  • Battery Switch, Dual w/ACR (required) - Detail
    Battery Switch, Dual w/ACR

    Battery Switch, Dual w/ACR (required)

    Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.

  • Battery Maintainer/Charger, 220v - Detail
    Battery Maintainer/Charger, 220v

    Battery Maintainer/Charger, 220v

    Built in battery charger located in the engine compartment with external power connection at the transom.

  • Battery Maintainer/Charger, 110v - Detail
    Battery Maintainer/Charger, 110v

    Battery Maintainer/Charger, 110v

    Built in battery charger located in the engine compartment with external power connection at the transom.

Explore Similar Models
