The DNA of a Cruiser with Cutting-Edge Innovation.
- Day Cruising
- Wakeboarding
- Skiing
- At Anchor In-Water Activity
- Overnight Aboard
- Large Bodies of Water
- No
Exterior

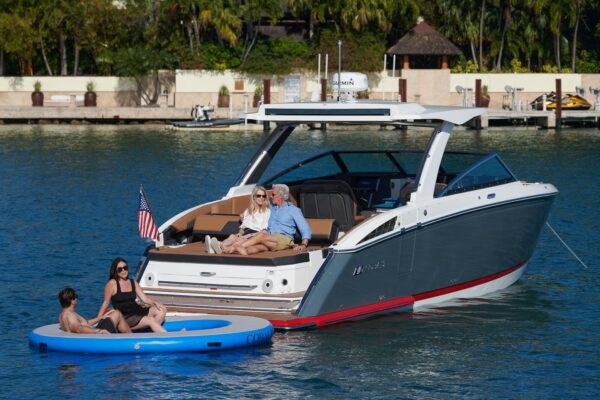

The R33 combines classic styling with innovative geometry, giving it a commanding presence on the water. Stainless steel accents are like jewelry for your boat, and a hydraulic swim platform with a patented mechanical Swim Step offers effortless access to the water.

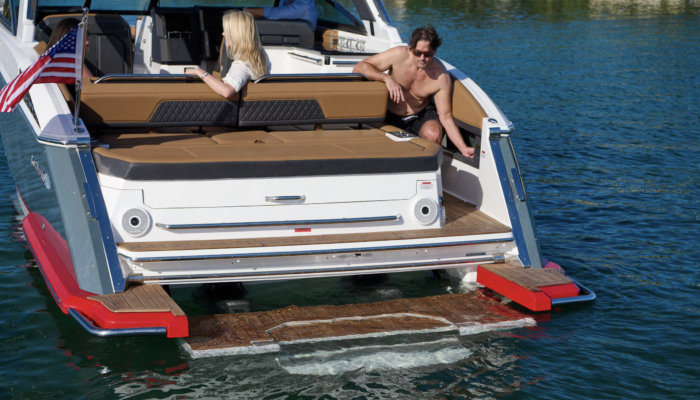

Great for water activities, the entire full-width swim platform lowers below the water hydraulically with the push of a button, offering easy access in or out of the water and into the boat.
Enjoy this easy, convenient built-in system to manage large yacht-style inflatables and store them out of sight in a dedicated compartment—deployed and retrieved with the touch of a button.
Experience starboard-side dock-level boarding with a structurally reinforced hull-side opening with a water-tight gasket seal, and a carefully matched door to blend perfectly into the hull.
Features & Innovations
Cobalt + Garmin
Harness the dependability, durability, and capability of Garmin at your helm with our feature rich, high-resolution glass cockpit. Here you'll find advanced navigation, networking and instrumentation technology combine with an intuitive interface to meet the needs of any captain. Get wider viewing angles and superior clarity on the touchscreen with full HD in-plane switching. Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping. With SmartMode™ everything is designed to give you quick, one-touch access to the information you need.Saltwater or fresh — no matter where you take to the water, you can trust Garmin marine technology to give you an unsurpassed level of confidence at the helm.
Seakeeper
Side Entry Door
Harman Kardon Audio System
Cobalt has partnered with Harman Kardon to bring their signature sound to the water. Guests can comfortably sit next to any speaker on the boat, guaranteeing a pleasant experience from every seat.. Includes marine ruggedized components and speakers that are classic yet timeless and can handle the harshest conditions–creating a top-tier audio system like none other in the marine industry.
Hydraulic Swim Platform with Swim Step
Combine the convenience of a hydraulically submersible swim platform with the innovation of the patented Cobalt Swim Step and you'll have a multi-level home-base for all your water-borne activities. Easy access in or out of the water with two levels deployed below the waterline.
Fresco Chil Vinyl
Finally, no more hot seats on darker colored vinyl while you’re out enjoying a full day of fun on the water. This anti-bacterial, anti-fungal, mildew-resistant, and sulfide stain-resistant fabric technology keeps your vinyl a full 15-20 degrees cooler than traditional vinyl even when it’s out in the sun.
SOF-TRAC POSITIVE TRACTION MAT
From the swim platform through the cockpit, dress up your new Cobalt with the Sof-Trac Positive Traction Mat. Gentle on swimsuits and wakeboards, you’ll maintain traction even when wet. See you local Cobalt dealer for details.
Splash & Stow™
Cobalt’s award-winning Splash & Stow™ eliminates the traditional way of transporting, deploying, and retrieving heavy-duty, yacht-style inflatables. At the quick touch of a button, the inflatable is deployed and connected to the built-in power inflator, leading to hours of fun and enjoyment on the water. Available with either the Splash & Stow™ Inflatable Round Island or Inflatable Long Rectangle Mat.
Yamaha Seascooter
For those who want to explore the beauty below the surface, Cobalt now offers Yamaha’s flagship Seascooter designed for professional and recreational divers, allowing you to spend more time in the water while exerting less energy. The full-featured Seascooter lets you shift between 3 rotational speeds and gets you cruising underwater up to 3.7mph. An automatic buoyancy system, designed for saltwater, allows you to concentrate on the scenery and not on your equipment.
Fender Clip Package
Cobalt stainless-steel fender clips are a quick mount system installed in the deck at the perfect fender position, so the lines are always set to optimum length. When docking, simply insert the pin into the fitting and you’re done.Interior
Finely tailored upholstery, expansive seating with modern amenities, thoughtful stowage, an ergonomic helm with digital dual Garmin Glass Cockpit touchscreens—all can be found within the R33. Plus, an all-new marine sound system from Harmon Kardon and highly anticipated Seakeeper innovation that eliminates 95% of boat roll create a truly standout ride.
Experience maximized seating and modern design touches like contrasting color combinations, quilted upholstery, and Fresco Chil Vinyl on dark interiors to keep surface temperatures cooler.
Simply operated, offers seating on the sunpad at the swim platform, keeping you near the in-water activity on the platform. When not in use, folds down flat to become hidden in the sunpad.
Hybrid design with a cuddy cabin and above-deck bow seating. Plus, fabric upholstery seating, storage cabinet, hidden fold-down filler cushion for seating area, tinted skylight, and more.
Technical Details
- Length Overall w/Swim Platform33' 4'' / 10.16 m
- Beam10' 6'' / 3.20 m
- Deadrise at Transom21 degrees / 21 degrees
- Fuel Capacity150 gal / 568 L
- Freshwater Capacity25 gal / 95 L
- Bridge Clearance (windshield only)6' 7'' / 2.00 m
- Bridge Clearance (Tower Up)9' 4'' / 2.84 m
- Bridge Clearance (Tower Down)7' 11'' / 2.41 m
- Bridge Clearance (w/ Hardtop & Radar)10' 4'' / 3.15 m
- Draft Drive Up, Twin Eng.26'' / .66 m
- Draft Drive Down, Twin Eng.33'' / 0.84
- Dry Weight, w/Twin Engines (options not included)11,193 lbs / 5077 kg
- Boat Certified CapacityYacht Certified
- Boat Certified Capacity w/gearYacht Certified
Volvo Penta
- Twin V8-380CE DP Joystick - 380 hp (283 PkW)
- Twin V8-430CE DP Joystick - 430 hp (321 PkW)
- Twin V8-300CE-G DP Joystick - 300 hp (221 PkW)
- Twin V8-350CE-G DP Joystick - 350 hp (261 Pkw)
MerCruiser
- Twin 8.2 Mag HO ECT B3X DTS Axius - 430 hp (321 PkW)
- Twin 8.2 Mag ECT B3X DTS Axius - 380 hp (283 PkW)
- Twin 6.2 L MPI ECT-350 B3 DTS Axius - 350 hp (261 PkW)
- Twin 6.2 L MPI ECT-300 B3 DTS Axius - 300 hp (221 PkW)
Engine Enhancements (Standard)
- Trip Computer (Volvo EVC)
- DTS (Merc)
- EVC w/PTA & Cruise (Volvo)
Engine Enhancements (Optional)
- VOL Total Control Pkg (Autopilot & DPS)
- TCC (Titanium Ceramic Coating)-Volvo
- Seacore (Merc)
- Anti-Corrosion System (Vol 300hp)
Standard
- USB/USB-C Receptacle Charger
- Steering Wheel, Black Leather/Stainless Steel
- Stainless Steel Switches
- Hour Meters
- Depth & Water Temp Gauge Pkg.
- Glass Cockpit, Dual Garmin 8610
- Compass, Digital
- Composite Helm Eyebrow, Custom Stitching
Optional
- VOL Total Control Pkg (Autopilot & DPS)
- TCC (Titanium Ceramic Coating)-Volvo
- Seacore (Merc)
- Anti-Corrosion System (Vol 300hp)
Standard
- Stereo Remote, Transom (Prem/Plat Sound)
- Sound System w 6 Spkrs.
- Stereo Remote, Dash - Detail
Stereo Remote, Dash
Control all stereo functions from the convenient dash mounted head unit.
- iPod/USB/MP3 Port - Detail
iPod/USB/MP3 Port
Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.
Optional
- Stereo Remote, Transom (Std. Sound)
- Satellite Radio System
- Premium Sound w/Transom Spkrs.-Hard Top
- Prem Sound w/Transom Spkrs.
- Prem Sound w/Transom & Arch Spkrs-1 pr.
- HK Sound w/Transom & Arch Spkrs-2 pr. - Detail
HK Sound w/Transom & Arch Spkrs-2 pr.
The premium sound system is an all-new, first-of-its-kind marine audio system from Harman Kardon. The system was acoustically tuned to the R33 ensuring a brilliant, expertly tailored sound. Even the most discerning audiophiles will discover a sound that will make every journey more extraordinary.
- HK Plat Sound w/Transom Spkrs.-Hard Top - Detail
HK Plat Sound w/Transom Spkrs.-Hard Top
The premium sound system is an all-new, first-of-its-kind marine audio system from Harman Kardon. The system was acoustically tuned to the R33 ensuring a brilliant, expertly tailored sound. Even the most discerning audiophiles will discover a sound that will make every journey more extraordinary.
- HK Plat Sound w/Transom Spkrs. - Detail
HK Plat Sound w/Transom Spkrs.
The premium sound system is an all-new, first-of-its-kind marine audio system from Harman Kardon. The system was acoustically tuned to the R33 ensuring a brilliant, expertly tailored sound. Even the most discerning audiophiles will discover a sound that will make every journey more extraordinary.
Standard
- Trash Receptacle
- Sink Console (head compartment) - Detail
Sink Console (head compartment)
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
- Seating Varadense Comfort
- Ice Chest, Bow
- Helm Seat, Extra Wide
- Dual Sundeck Convertible Lounger
- Head w/Pump Out Porta Potti - Detail
Head w/Pump Out Porta Potti
Easily accessible, upholstered head compartment. Shown with fixed Porta Potti.
- Cooler, 36 qt. (cockpit seat only)
- Bench Seat Storage
- Bow Walk-Thru Door
Optional
- Wireless Phone Chargers, w/Holder
- TV Smart 22'', 12v (Cabin)
- Throw Pillows, Weighted (4) - Detail
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Throw Pillows, Weighted (10) - Detail
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Teak Floor, Head & Cabin
- Teak Floor, Bow & Cockpit - Detail
Teak Floor, Bow & Cockpit
- Stainless Steel Foot Tread (helm only)
- Sof-Trac Mat (helm footrest)
- Sof-Trac Mat (head, cabin)
- Sof-Trac Mat (bow, cockpit)
- LED Interior Accent Lighting (RGB) - Detail
LED Interior Accent Lighting (RGB)
(Shown in Cobalt model R6)
- Interior Trim Pkg., Wood - w/Seat
- Interior Trim Pkg., Wood - w/Galley
- Helm Seat, Electric
- Head w/VacuFlush, Macerator - Detail
Head w/VacuFlush, Macerator
- Head w/VacuFlush - Detail
Head w/VacuFlush
- Gray Water System
- Galley, Cockpit (replaces seat) - Detail
Galley, Cockpit (replaces seat)
Galley with freshwater sink, refrigerator and optional electric grill.
- Footrest, Helm (Fold-Down)
- Floor Covering, Sea Grass (helm footrest
- Floor Covering, Sea Grass (head, cabin)
- Floor Covering, Sea Grass (bow, cockpit)
- Electric Stove Top (req. Galley)
- Dinette Table, Solid Teak
- Cooler,Soft-Side 37L
- Dinette Table w/Bow & Cockpit Receptacle - Detail
Dinette Table w/Bow & Cockpit Receptacle
- Cockpit Heater
- Bow Table (additional) - Detail
Bow Table (additional)
- Air Compressor w/Holder - Detail
Air Compressor w/Holder
12v power inflator for water toys, with a dedicated holder.
- Air Conditioning (Head/Cabin)
- Bow Center Cushion Insert
Standard
- Transhield Shipping Cover
- Windshield, Stainless Steel
- Swim Platform w/Flip-Down Swim Step
- Ski Tow - Stainless Steel
- Sky Light (Head Compartment)
- Stainless Steel Engine Vents
- Graphics, Molded-In Gelcoat
- Motorbox Actuator
- COBALT Lettering, Chrome Backlit
- Extended Running Surface
- Cleats (Bow, Midship, Stern)
- Bow Scuff Plate, Stainless Steel - Detail
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.
- Anchor Locker
Optional
- Wakeboard Racks, PTM ClampForce 3.0
- Board Rack Covers, Roswell
- Wakeboard Racks, T2 (Roswell) w/clamps
- Board Rack Covers, PTM
- Underwater Lighting - Detail
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model R8 Surf.
- Transom Tilt Switches (twin)
- Teak Swim Platform - Detail
Teak Swim Platform
Shown on optional hydraulic swim platform.
- Transom Shower (cold water)
- Swim Platform Transom Lighting - Detail
Swim Platform Transom Lighting
LED transom lighting provides the appropriate level of illumination for the perfect evening of entertaining friends. Shown on model 242 with standard swim platform.
- Splash & Stow®, Inflatable Mat - Detail
Splash & Stow®, Inflatable Mat
- Swim Platform Hydraulic w/Flip-Down Step - Detail
Swim Platform Hydraulic w/Flip-Down Step
- Splash & Stow®, Inflatable Island - Detail
Splash & Stow®, Inflatable Island
- Sof-Trac Mat, Swim Platform
- Seascooters, Yamaha (2) - Detail
Seascooters, Yamaha (2)
- Flagpole w/Flag - Detail
Flagpole w/Flag
Stainless steel flag pole with flag clips, receptacle and flag.
- Fender Clips w/Line (6) - Detail
Fender Clips w/Line (6)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- COBALT Lettering, Satin White (exterior)
- Boarding Door, Cockpit - Detail
Boarding Door, Cockpit
Starboard side entry.
- COBALT Lettering, Satin Black (exterior) - Detail
COBALT Lettering, Satin Black (exterior)
- Arch, Elec. Fwd. Folding w/Rotating Sunshade
- Arch w/Hard Top/Electric Awning
- Arch w/Hard Top
Optional
- Shade Sail, Bow - Detail
Shade Sail, Bow
Shade Sail shown on R8 Surf.
- Shade Sail, Aft
- Mooring Cover - Detail
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, and stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
- Cockpit Tonneau Cover - Detail
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.
- Bow Tonneau Cover - Detail
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
Standard
- Through Prop Exhaust
- Stainless Steel Windshield Braces - Detail
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
- Kevlar Reinforced Hull
- Ignition Safety Switch - Detail
Ignition Safety Switch
Standard engine ignition safety switch with belt clip.
- Fire Extinguisher(s), Manual
- Fiberglass Stringer System
- Fiberglass Cockpit Liner
- Composite Transom
- Composite Seat Bases
- Composite Floor
- Circuit Breaker Protected Elec System - Detail
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
- Battery Switch, Dual w/ACR - Detail
Battery Switch, Dual w/ACR
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
- 10/5/3 Year Warranty Protection
Optional
- Windlass w/Docking Lights System
- Windlass, All Chain w/Anchor - Detail
Windlass, All Chain w/Anchor
Recessed anchor windlass is mounted below decks in the anchor locker. Cobalt uses a through hull mounted hause pipe made of stainless steel, and a stainless delta style anchor with 80 feet of chain and plaited line. Installation may vary depending on specific boat model.
- Trim Tabs w/Indicators, w/o Autoglide - Detail
Trim Tabs w/Indicators, w/o Autoglide
Fine tune your ride with trim tabs. Great for load leveling or extreme low speed cruising.
- Shorepower, 220v
- Tool Kit - Detail
Tool Kit
- Trim Tabs w/Indicators w/Autoglide - Detail
Trim Tabs w/Indicators w/Autoglide
Fine tune your ride with trim tabs. Great for load leveling or extreme low speed cruising.
- Shorepower, 110v
- Rearview Mirror, Roswell w/Custom Cover
- Gyroscope, Seakeeper 2 - Detail
Gyroscope, Seakeeper 2
- Battery Maintainer/Charger, 220v - Detail
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.
- Fire Extinguisher, Automatic System - Detail
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
- Battery Maintainer/Charger, 110v
